Nice BFAB5024-DKit 24Vdc underground kit for swing gates up to 5m

-35% Nice BFAB5024-DKit 24Vdc underground kit for swing gates up to 5m

Reliable and resistant: motors made up of solid internal parts in metal and bronze alloy.

Simple to use: mechanical stop system on closure. Standard opening max. 110 degrees, optional opening 360 degrees.

The 24Vdc version with magnetic encoder and new control unit, Moonclever (MC824H), is equipped with BlueBUS technology.

Totally compatible with the previous Metro series.

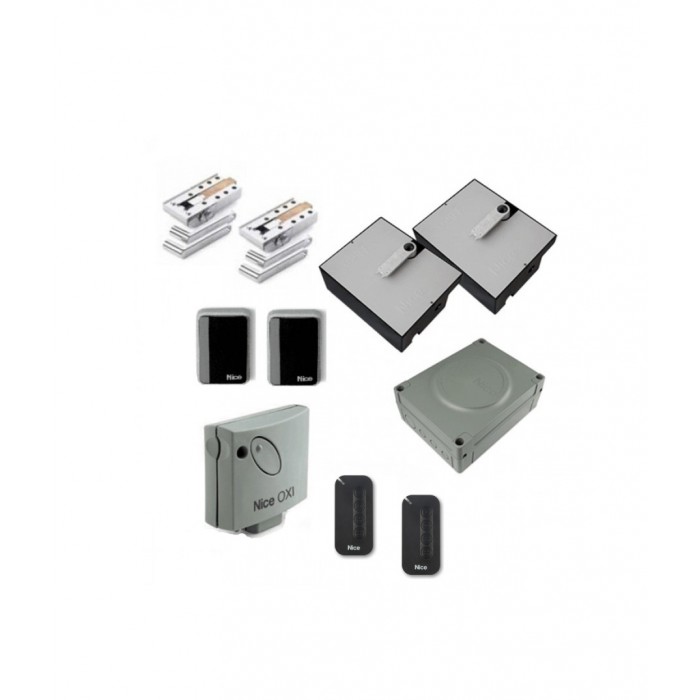

The kit contains:

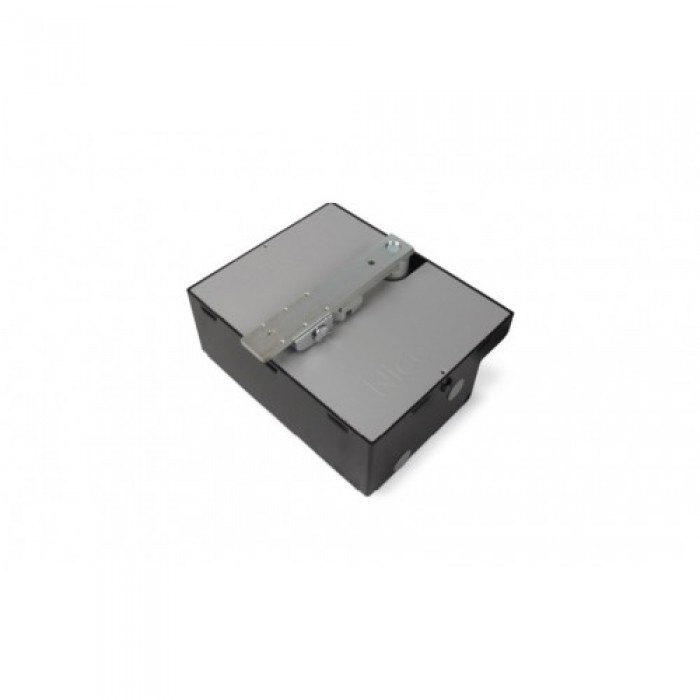

  • 2 x BFAB5024 24Vdc irreversible electromechanical gear motors, with a magnetic encoder.
  • 2 x BFABBOX  Chamfered Foundation Box with a mechanical stop on opening for Fab operators. With Cataphoresis paint finish. Highly Resistant to corrosion.
  • 2 x ON2E transmitters 433.92 MHz, 2 channels.

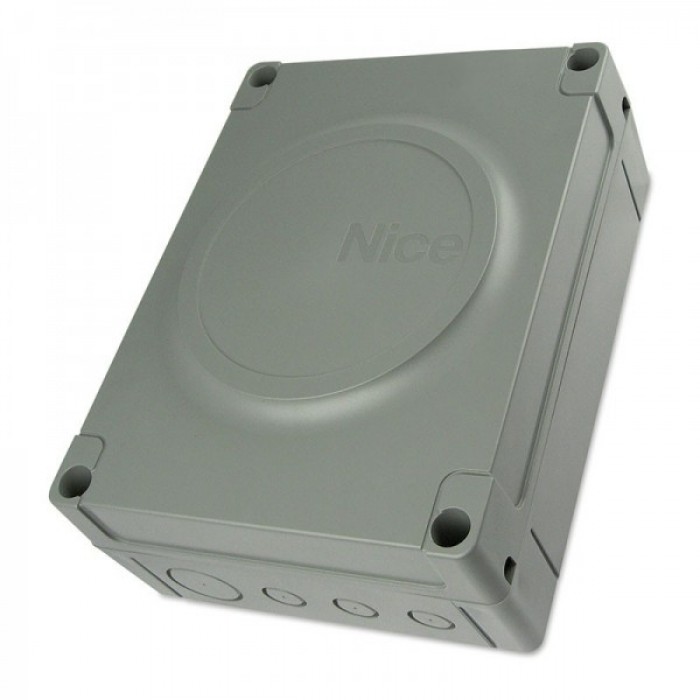

  • 1 x MC824H control unit for two motors, with a 24Vdc encoder.
  • 2 x EPMB outdoor photocells designed for connection via nice BlueBUS.

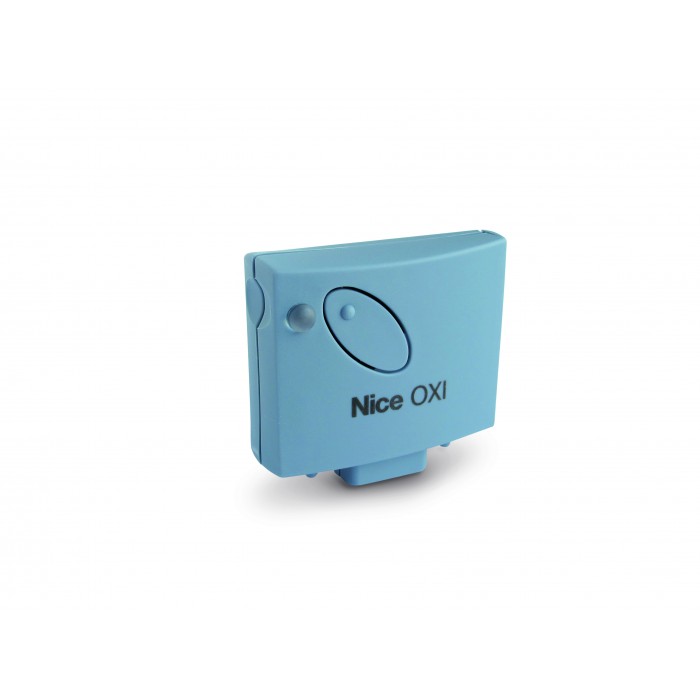

  • 1 x OXI receiver of up to 4 channels, with connector, without built-in transmitter.
  • 1 x BMA3 Lever-type unlock system.

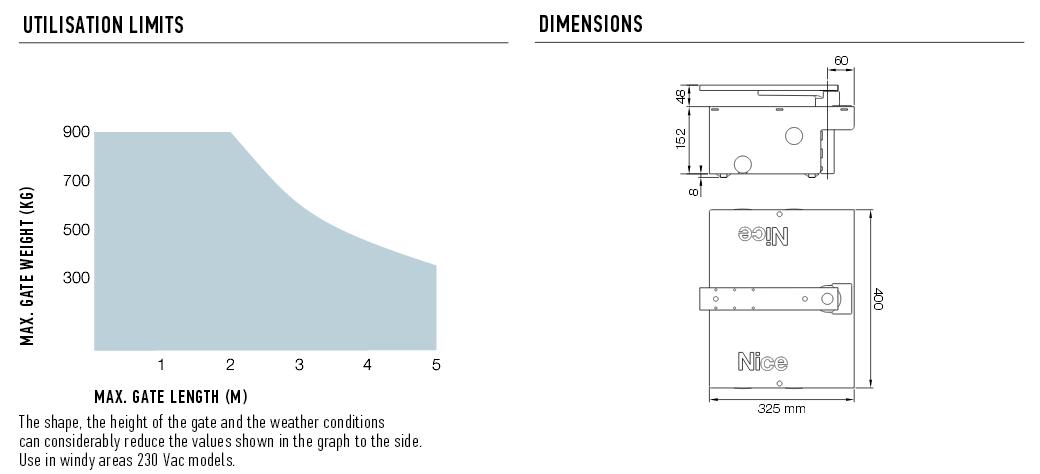

Big Fab Installation Diagram

Technical
Battery Backup Option Yes
BlueBus Yes
IP Rating 67
Max Gate Leaf Length 5.0m
Max Speed 0.8rpm
Motor Voltage 24Vdc
Solar Power Option Yes
Work Cycle 45%

Write a review

Please login or register to review

Nice gate automation

  • : 1831
  • Brand: Nice
  • Product Code: BFAB5024-DKIT-nice
  • Dispatched: 1-2 Working Days

Tags: BFAB5024-DKIT, Big-Fab Kit 1, B-FAB, BFAB5024, Big Fab

. . . .
